Dual JK Flip-Flop Stepper Motor Driver

By Christoph Maier

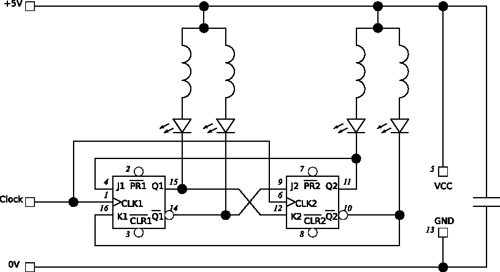

Probably the simplest drive possible is one made with nothing more than 2 flip flops:

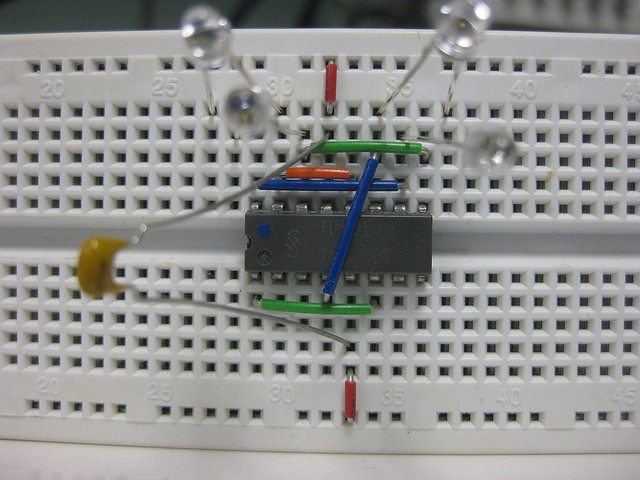

Note the LEDs are not needed, they are only there to show the coil signals. Here it is on a breadboard:

And here is one running:

Stepper motor driven by 7476 dual JK flip-flop from Tatzelbrumm on Vimeo.

Now, please note there are many problems with this:

But the point here isn't to build a great driver, it's to learn how the sequence of signals can be made. These issues can be overcome^ but less expensive drivers are a better choice for actual use. The problem: You never learn how they work!

Also: Digital Logic Tutorial
