Random Number Methods

Here's how to compute an 8-bit pseudorandom sequence. You can start with any value except zero and each time you run through the algorithm you'll get a new value.

- initialize a byte to any value except zero.

- calculate the sum (MOD 2) of bits 7, 1 and 0 of the byte.

- shift the byte 1 position to the left, shifting in the result of the above sum into bit 0.

- your byte now contains the random number (use this value to get the next one)

A (MOD 2) sum is the same as exclusive or (XOR).

This is an 8 bit LFSR (linear feedback shift register). If you want to design LFSRs of any number of bits, you might want to check out "Linear Feedback Shift Registers" by (who?) http://homepage.mac.com/afj/lfsr.html In particular the taplist http://homepage.mac.com/afj/taplist.html shows what bits to pick out, in order to get a "maximal length" of (2^n)-1 before it repeats.

So a maximal length 8 bit LFSR would repeat after all possible 255 values and never hit 0. Unfortunately, a maximal length 8 bit LFSR requires either 4 taps or 6 taps. The above algorithm takes a short cut of using only 3 taps -- "bits 7, 1, and 0". So it is *not* maximal sequence.
* Starting with "1", it repeats after 127 states.
* Starting with "2" (0000 0010), it repeats after 127 states (different than the above).
* Starting with "0", it remains stuck at zero (like maximal length LFSRs).
* Starting with "FF", it remains stuck at "FF".

Maximal-length LFSRs always require an even number of taps. Some require the minimum of 2 taps, such as the ones for 3 bits, 4 bits, 5 bits, 6 bits, 7 bits, (but not 8), 9 bits, 10 bits, 11 bits, (bit not 12, 13, or 14), 15 bits, (but not 16), 17 bits, 18 bits, etc.

Hardware white noise generators

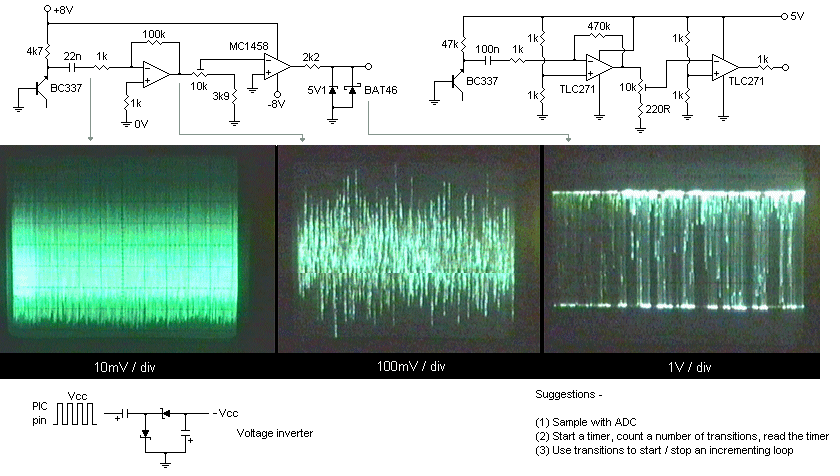

Design by Jinx, was approved for gaming by Internal Affairs Dept of NZ govt


http://home.clear.net.nz/pages/joecolquitt/white_noise.html

, design by dr. Imre Bartfai, 8/30/1999

 +--------------------------------------------------------------------- Vdd
 |                           220k                    220k               5V
 |                       +---\/\/\---+           +---\/\/\---+------+
 |                       |           |           |           |      |
 |                       |    |\     |           |    +------+      \
 | EFT317 PNP      +-----+----|- \   |           |    |             / 220k
 |      C          |     |    |    >-+----| |----+    |     |\      \
 |   |/            \  +-------|+ /        47n    |    +-----|- \    |
 +--B|        220k /  |  |    |/                 |    |     |    >--+
     |\            \  |  |  1/2 LM358            +----------|+ /    |
       |E          |  |  |                       |    |     |/      \
       +----| |----+--+  +                       +    +             /  47k
       |    47n    |     |                       |    | 1/2 LM358   \
       \           \     \                       \    \             |
  4k7  /        1M /     / 2k2                1M /    / 2k2         + out
       \           \     \                       \    \
       |           |     |                       |    |
       +-----------+-----+-----------------------+----+---------------- Vss

 Standard TTL can not be driven, but CMOS (and maybe LS) are o.k.
 The power supply must be filtered thoroughly due to the high gain!

Microchip PIC Random Numbers
