PIC Specific RS232 routine

16F819 9600 baud with circular RX & TX buffers

Mike McLaren - K8LH (Westland, MI) says:

Here is a Serial I/O demo for the 16F819 which uses 3X bit rate interrupts as well as Rx and Tx state machines in the ISR to achieve full-duplex 9600 baud serial I/O with 16-byte circular Tx and Rx buffers...

While this demo could easily be considered a novelty for using nearly 50% of the overall processing time at 9600 baud with an 8-MHz clock, I suspect it could be quite useful with a faster clock and/or at slower baud rates...

        list p=16F819, b=8, c= 102, n=71, t=on, st=off, f=inhx32
;******************************************************************
;*                                                                *
;*  Filename: 16F819 Serial 1.asm                                 *
;*    Author: Mike McLaren, K8LH   (k8lh_at_arrl.net)             *
;*      Date: 08-Jun-05  (last revision 12-Jun-05)                *
;*                                                                *
;*   Full Duplex Bit-Banged 9600 Baud Serial I/O Demo             *
;*    (based on a nearly identical 12F683 Demo)                   *
;*                                                                *
;*  ·Uses 16F819 INTOSC running at 8-MHz                          *
;*  ·Bit rate error 0.6% plus or minus 1.0% for INTOSC            *
;*  ·Bit-banged 9600 baud serial I/O                              *
;*    ·Full Duplex (TX and RX simultaneously)                     *
;*    ·Interrupts at approximately 3X bit rate every              *
;*     34.5 usecs (every 69 instruction cycles)                   *
;*    ·Circular 16-byte receive ahead buffer                      *
;*    ·Circular 16-byte transmit ahead buffer                     *
;*    ·Inverted TX and RX signals (MAX232A or similar             *
;*     inverting RS-232 interface required)                       *
;*  ·ISR and Init232, Put232, and Get232 support routines         *
;*   fit comfortably in the first 192 words of code space         *
;*   occupying memory from 0004 through 00BF (188 words)          *
;*                                                                *
;*     MPLab: 7.11    (tabs=8)                                    *
;*     MPAsm: 4.01                                                *
;*                                                                *
;******************************************************************

        #include        <p16f819.inc>
        errorlevel      -302

        __config  _LVP_OFF & _PWRTE_ON & _WDT_OFF & _INTRC_IO
;
;  Serial I/O file register variables & buffers
;
TX_RPTR equ     0x20            ; TX buffer Rd pointer (isr)
TX_WPTR equ     0x21            ; TX buffer Wr pointer (main)
TXCHAR  equ     0x22            ; TX character (main, Put232)
TXWORK  equ     0x23            ; TX ISR work byte (isr)
;
RX_RPTR equ     0x24            ; RX buffer Rd pointer (main)
RX_WPTR equ     0x25            ; RX buffer Wr pointer (isr)
RXCHAR  equ     0x26            ; RX character (main, Get232)
RXWORK  equ     0x27            ; RX ISR work byte (isr)
;
TX_SM   equ     0x28            ; TX state machine var (isr)
RX_SM   equ     0x29            ; RX state machine var (isr)
;
RXBUFF  equ     0xA0            ; RX buffer, 16 bytes A0h-AFh
TXBUFF  equ     0xB0            ; TX buffer, 16 bytes B0h-BFh
;
;  16F819 serial port pin defines
;
#define RXPIN   PORTB,2         ; RS-232 RX (RB2)
#define TXPIN   PORTB,5         ; RS-232 TX (RB5)
;
;  file locations used by ISR to save and restore context
;
W_ISR   equ     0x70            ; ISR 'W'
S_ISR   equ     0x71            ; ISR 'STATUS'
P_ISR   equ     0x72            ; ISR 'PCLATH'
F_ISR   equ     0x73            ; ISR 'FSR'
;
;  other vars
;
FSRTMP  equ     0x74            ; Put232 & Get232 (main)
PTRL    equ     0x75            ; PutStr routine (main)
PTRH    equ     0x76            ; PutStr routine (main)

;******************************************************************
;
;  _Title macro - home cursor, clear screen, print a string
;
_Title  macro   str             ;
        local   String, Print
        movlw   low String      ;
        movwf   PTRL            ;
        movlw   high String     ;
        movwf   PTRH            ;
        goto    Print           ;
String  dt      h'1B',"[2J"     ; <esc>[2J sequence
        dt      str,0
Print   call    PutString       ; print string
        endm

;******************************************************************
;
;  Hardware notes
;
; <1> INTOSC 8-MHz, 500-nsec instruction cycle time
; <2> RB2 (pin 08) > RXPIN, 'bit banged' serial input
; <3> RB5 (pin 11) > TXPIN, 'bit banged' serial output
; <4> RS-232 signals inverted (use MAX232A or similar)
; <5>
; <6>
; <7>
;
;
;  This program simply prints a text string to Hyperterminal
;  and echos characters coming from Hyperterminal...
;

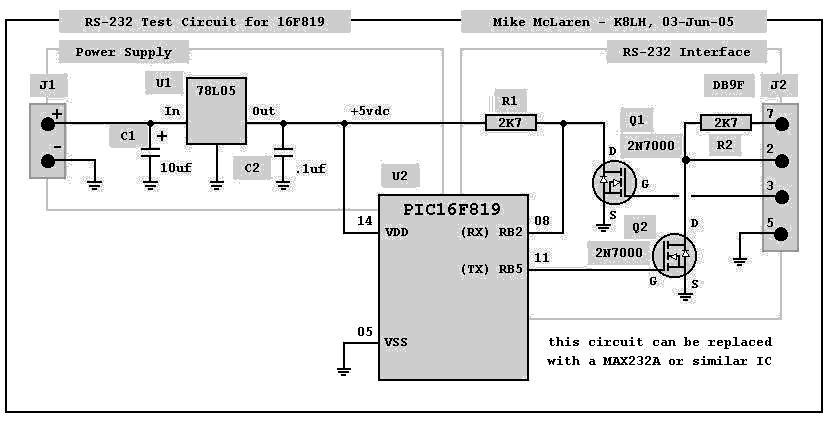

;  Setup Hyperterminal for 9600, 8, 1, none...  Use a MAX232 or
;  similar level shifting circuit (I use a pair of 2N7000s) for
;  connection between the 16F819 and the PC...
;

;******************************************************************
;*                                                                *
;*                                                                *
;*                                                                *
;*                                                                *
;*                                                                *
;******************************************************************

        org     0x0000

RESET   clrf    STATUS          ;                                 |B0
        goto    MAIN            ;                                 |B0

;******************************************************************
;*                                                                *
;*    Interrupt Service Routine for a Full Duplex Bit-Banged      *
;*    9600 Baud Serial I/O with 16 byte circular receive and      *
;*    transmit buffers...                                         *
;*                                                                *
;*    Interrupts are generated at approximately 3 times the       *
;*    bit rate for 9600 baud at 34.5-usec intervals or every      *
;*    69 instruction cycles.                                      *
;*                                                                *
;*    The transmit and receive processes are executed in the      *
;*    correct sequence each interrupt cycle by using a state      *
;*    machine variable and jump table for both RX and TX.         *
;*                                                                *
;*    After detecting a start bit, the receive bit stream is      *
;*    sampled every third interrupt cycle in the approximate      *
;*    middle third of each bit (between 33% and 66%).             *
;*                                                                *
;*    The 16 byte circular TXBUFF is located at B0..BF in RAM     *
;*    and will buffer 15 bytes.  The "unload buffer" process      *
;*    is performed in the ISR after sending a character and       *
;*    the "load buffer" process is performed outside the ISR      *
;*    in the Put232 subroutine.                                   *
;*                                                                *
;*    The 16 byte circular RXBUFF is located at A0..AF in RAM     *
;*    and will buffer 15 bytes.  The "load buffer" process is     *
;*    performed in the ISR after receiving a character and        *
;*    the "unload buffer" process is performed outside of the     *
;*    ISR in the Get232 subroutine.                               *
;*                                                                *
;*    Of the 69 instruction cycles between interrupts the ISR     *
;*    uses between 34 and 35 cycles average each interrupt or     *
;*    approximately 49.3% to 50.7% of the overall processing      *
;*    time available.  The TX code uses almost the same number    *
;*    of instruction cycles when transmitting or idle.  The RX    *
;*    code uses 1 more instruction cycle average per interrupt    *
;*    when receiving than it does when idle.                      *
;*                                                                *
;*      34.0 cycles avg (49.3% mcu overhead) RX idle              *
;*      35.0 cycles avg (50.7% mcu overhead) RX in progress       *
;*                                                                *
;******************************************************************

        org     0x0004
;
;  save main program context
;
;  09 cycles every interrupt cycle
;
ISR     movwf   W_ISR           ; save W-reg                      |B?
        swapf   STATUS,W        ; doesn't change STATUS bits      |B?
        movwf   S_ISR           ; save STATUS reg                 |B?
        clrf    STATUS          ; bank 0                          |B0
        movf    PCLATH,W        ; get PCLATH                      |B0
        movwf   P_ISR           ; save PCLATH                     |B0
        bcf     PIR1,TMR2IF     ; clear TMR2 interrupt flag       |B0
;
;  enter the TX state machine
;
;  06 cycles, including TX SM jump, every interrupt cycle
;
        clrf    PCLATH          ;                                 |B0
        movf    TX_SM,W         ; get TX state machine            |B0
        addwf   PCL,f           ; off we go                       |B0
;
;  the TX state machine table (cycle times include ISR entry,
;  TX state machine jump, and RX state machine jump)
;
;  TX idle, 24.0 of 69.0 instructions per interrupt (34.8%)
;  TX proc, 24.0 of 69.0 instructions per interrupt (34.8%)
;
        goto    TX_CHK          ; TX idle       24 cycles         |B0
        goto    TX_0            ; start bit     24 cycles         |B0
        goto    TX_BUF          ;               31 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 0         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 1         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 2         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 3         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 4         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 5         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 6         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_BIT          ; bit 7         28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_PTR          ; stop bit      28 cycles         |B0
        goto    TX_NXT          ;               21 cycles         |B0
        goto    TX_RES          ; reset         23 cycles         |B0
;
;  perform TX "unload buffer" function and send the stop bit
;
;  13 cycles, including RX SM jump, 01 in 30 TX cycles
;
TX_PTR  incf    TX_RPTR,W       ; W = TX_RPTR + 1                 |B0
        andlw   h'0F'           ; keep in range 00..0F            |B0
        addlw   TXBUFF          ; make it range B0..BF            |B0
        movwf   TX_RPTR         ; update TX_RPTR                  |B0
        bsf     TXPIN           ; send stop bit                   |B0
        goto    TX_NXT          ; increment TX state              |B0
;
;  reset TX state machine during final third of the stop bit
;  for 138.5 usecs (1 and 1/3 bit times) between TX characters
;
TX_RES  clrf    TX_SM           ; reset TX state machine          |B0
        goto    TX_XIT          ;                                 |B0
;
;  copy character from RXBUFF to TXWORK after sending start bit
;
;  17 cycles, including RX SM jump, 01 in 30 TX cycles
;
TX_BUF  movf    FSR,W           ; get FSR                         |B0
        movwf   F_ISR           ; save it                         |B0
        movf    TX_RPTR,W       ; get TX buffer Rd ptr [B0..BF]   |B0
        movwf   FSR             ; setup indirect address          |B0
        movf    INDF,W          ; get data                        |B0
        movwf   TXWORK          ; put it in a work register       |B0
        movf    F_ISR,W         ;                                 |B0
        movwf   FSR             ; restore FSR                     |B0
        goto    TX_NXT          ; increment TX state              |B0
;
;  transmit bit
;
;  13 cycles, including RX SM jump, 08 in 30 TX cycles
;
TX_BIT  rrf     TXWORK,f        ;                                 |B0
        btfsc   STATUS,C        ; is it a '1'?                    |B0
TX_1    bsf     TXPIN           ; yes, send it                    |B0
        btfss   STATUS,C        ; is it a '0'?                    |B0
TX_0    bcf     TXPIN           ; yes, send it                    |B0
        goto    TX_NXT          ; increment TX state              |B0
;
;  if there's a transmit character buffered, bump the TX_SM var
;  to initiate the transmit process, else exit leaving TX_SM=00
;
;  09 cycles, including RX SM jump, every interrupt cycle until
;  a TX operation is initiated
;
TX_CHK  movf    TX_RPTR,W       ; get TX buffer Rd ptr [B0..BF]   |B0
        xorwf   TX_WPTR,W       ; xor TX buffer Wr ptr [B0..BF]   |B0
        btfss   STATUS,Z        ; skip empty (TX_RPTR=TX_WPTR)    |B0
TX_NXT  incf    TX_SM,f         ; inc TX state machine            |B0

;******************************************************************
;
;  enter the RX state machine (cycle times include ISR_XIT)
;
;  RX idle, 10.0 of 69.0 instructions per interrupt (14.5%)
;  RX proc, 11.0 of 69.0 instructions per interrupt (15.9%)
;
TX_XIT  movf    RX_SM,W         ; get RX state machine            |B0
        addwf   PCL,f           ; off we go                       |B0
;
;  the RX state machine table
;
        goto    RX_CHK          ; RX idle       10 cycles         |B0
        goto    RX_NXT          ; start bit     09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 0         14 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 1         14 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 2         14 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 3         14 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 4         14 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 5         14 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 6         14 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_BIT          ; bit 7         14 cycles         |B0
        goto    RX_BUF          ; buffer        19 cycles         |B0
        goto    RX_NXT          ;               09 cycles         |B0
        goto    RX_NXT          ; stop bit      09 cycles         |B0
        goto    RX_PTR          ; ptr & reset   18 cycles         |B0
;
;  copy completed character in RXWORK byte to RXBUFF
;
;  19 cycles, including ISR_XIT, 01 in 30 RX cycles
;
RX_BUF  movf    FSR,W           ;                                 |B0
        movwf   F_ISR           ; save FSR                        |B0
        movf    RX_WPTR,W       ; RX buffer Wr pointer [A0..AF]   |B0
        movwf   FSR             ; setup indirect address          |B0
        movf    RXWORK,W        ; get completed work byte         |B0
        movwf   INDF            ; place it in the RX buffer       |B0
        movf    F_ISR,W         ;                                 |B0
        movwf   FSR             ; restore FSR                     |B0
        goto    RX_NXT          ; increment RX state              |B0
;
;  receive bit
;
;  14 cycles, including ISR_XIT, 08 in 30 RX cycles
;
RX_BIT  btfsc   RXPIN           ; is it a 0?                      |B0
        bsf     STATUS,C        ; no, make it a 1                 |B0
        rrf     RXWORK,f        ; shift into our work byte        |B0
        goto    RX_NXT          ; increment RX state              |B0
;
;  perform RX buffer 'load' function after receiving byte
;
;  18 cycles, including ISR_XIT, 01 in 30 RX cycles
;
RX_PTR  incf    RX_WPTR,W       ;                                 |B0
        andlw   RXBUFF+h'0F'    ;                                 |B0
        xorwf   RX_RPTR,W       ; buffer full (WPTR+1=RPTR)?      |B0
        bz      RX_RES          ; yes, branch                     |B0
        xorwf   RX_RPTR,W       ; no, restore WPTR+1 value        |B0
        movwf   RX_WPTR         ; update WPTR                     |B0
;
;  reset RX state machine after receiving a complete character
;  and during the last 3rd (66%-100%) of the stop bit to allow
;  setup time for detecting the next start bit
;
RX_RES  clrf    RX_SM           ; reset RX state machine          |B0
        goto    ISR_XIT         ;                                 |B0
;
;  test for start bit (low)
;
;  10 cycles, including ISR_XIT, each cycle until RX initiated
;
RX_CHK  btfss   RXPIN           ; start bit?                      |B0
RX_NXT  incf    RX_SM,f         ; inc RX state machine            |B0
;
;  08 cycles each interrupt cycle
;
ISR_XIT movf    P_ISR,W         ;                                 |B0
        movwf   PCLATH          ; restore PCLATH                  |B0
        swapf   S_ISR,W         ;                                 |B0
        movwf   STATUS          ; restore STATUS                  |B?
        swapf   W_ISR,f         ; don't screw up STATUS           |B?
        swapf   W_ISR,W         ; restore W-reg                   |B?
        retfie                  ; return from interrupt           |B?

;******************************************************************
;*                                                                *
;*  Companion Put232 and Get232 subroutines                       *
;*                                                                *
;******************************************************************
;
;  Put232 - enter with character to be sent in W
;      - performs TXBUFF 'load buffer' operation
;
Put232  movwf   TXCHAR          ; save character                  |B0
Pwait   incf    TX_WPTR,W       ; W = WPTR + 1                    |B0
        andlw   h'0F'           ; keep it in range 00..0F         |B0
        addlw   TXBUFF          ; make it in range B0..BF         |B0
        movwf   RXCHAR          ; save here temporarily           |B0
        xorwf   TX_RPTR,W       ; buffer full (WPTR+1=RPTR)?      |B0
        bz      Pwait           ; yes, branch, wait               |B0
        movf    FSR,W           ; get FSR                         |B0
        movwf   FSRTMP          ; save it                         |B0
        movf    TX_WPTR,W       ; get TX buffer Wr ptr (B0..BF)   |B0
        movwf   FSR             ; setup indirect address          |B0
        movf    TXCHAR,W        ; get character                   |B0
        movwf   INDF            ; place it in TX buffer           |B0
        movf    FSRTMP,W        ;                                 |B0
        movwf   FSR             ; restore FSR                     |B0
        movf    RXCHAR,W        ; get saved TX_WPTR+1 value       |B0
        movwf   TX_WPTR         ; update TX_WPTR                  |B0
        movf    TXCHAR,W        ; restore W entry data            |B0
        return                  ;                                 |B0
;
;  Get232 - exit with received character in W & RXCHAR var
;      - performs RXBUFF 'unload buffer' operation
;
Get232  movf    RX_RPTR,W       ;                                 |B0
        xorwf   RX_WPTR,W       ; RPTR = WPTR (buff empty)?       |B0
        bz      Get232          ; yes, loop, wait for character   |B0
        movf    FSR,W           ;                                 |B0
        movwf   FSRTMP          ; save FSR                        |B0
        movf    RX_RPTR,W       ;                                 |B0
        movwf   FSR             ; setup indirect address          |B0
        movf    INDF,W          ; get RXBUFF[RPTR] character      |B0
        movwf   RXCHAR          ; save it for later               |B0
        movf    FSRTMP,W        ;                                 |B0
        movwf   FSR             ; restore FSR                     |B0
        incf    RX_RPTR,W       ; W = RX_RPTR+1                   |B0
        andlw   RXBUFF+h'0F'    ; keep it in range of A0..AF      |B0
        movwf   RX_RPTR         ; update RX_RPTR                  |B0
        movf    RXCHAR,W        ; get receive character           |B0
        return                  ;                                 |B0

;******************************************************************
;*                                                                *
;*  Companion Init232 subroutine                                  *
;*                                                                *
;******************************************************************
;
;  initialize RS-232 variables before turning on interrupts
;
Init232 clrf    RX_SM           ; clr RX state machine var        |B0
        clrf    TX_SM           ; clr TX state machine var        |B0
        movlw   RXBUFF          ; RX circular buffer address      |B0
        movwf   RX_RPTR         ; set RX buffer Rd pointer        |B0
        movwf   RX_WPTR         ; set RX buffer Wr pointer        |B0
        movlw   TXBUFF          ; TX circular buffer address      |B0
        movwf   TX_RPTR         ; set TX buffer Rd pointer        |B0
        movwf   TX_WPTR         ; set TX buffer Wr pointer        |B0
;
;  put TXPIN latch in the stop condition and setup TRIS data
;  direction for TXPIN output and RXPIN input (select bank 1
;  to access the TRIS register instead of the PORT register)
;
        bsf     TXPIN           ; put TXPIN latch in stop state   |B0
        bsf     STATUS,RP0      ; select Bank 1 for TRIS access   |B1
        bcf     TXPIN           ; set TXPIN as output             |B1
        bsf     RXPIN           ; set RXPIN as input              |B1
;
;  configure TIMER2 for 34.5-usec interrupts (8-MHz clock)
;
;  note: INTCON is 00000000 after any reset
;         T2CON is 00000000 after any reset (pre=1, post=1)
;          PIE1 is 000-0000 after any reset
;          PIR1 is 000-0000 after any reset
;
        bsf     PIE1,TMR2IE     ; enable TMR2 interrupts          |B1
        movlw   d'69'-1         ; number of 500-nsec ticks        |B1
        movwf   PR2             ; 34.5-usec interrupts            |B1
        bcf     STATUS,RP0      ; select Bank 0                   |B0
        bsf     INTCON,GIE      ; enable global interrupts        |B0
        bsf     INTCON,PEIE     ; enable peripheral interrupts    |B0
        bsf     T2CON,TMR2ON    ; start TMR2                      |B0
        return                  ;                                 |B0

;******************************************************************
;
;  Print String - enter with string address in PTRL & PTRH
;
PutString
        call    GetTable        ; get a table character           |B0
        andlw   b'11111111'     ;                                 |B0
        btfsc   STATUS,Z        ; last character?                 |B0
        return                  ; yes, return                     |B0
        call    Put232          ; output char                     |B0
        incfsz  PTRL,F          ; increment pointer               |B0
        goto    PutString       ;                                 |B0
        incf    PTRH,F          ;                                 |B0
        goto    PutString       ;                                 |B0
;
GetTable
        movf    PTRH,W          ;                                 |B0
        movwf   PCLATH          ;                                 |B0
        movf    PTRL,W          ;                                 |B0
        movwf   PCL             ;                                 |B0

;******************************************************************
;*                                                                *
;*                                                                *
;*                                                                *
;*                                                                *
;*                                                                *
;******************************************************************

MAIN    clrf    CCP1CON         ; capture/compare module off      |B0
        bsf     STATUS,RP0      ; bank 1                          |B1
        movlw   h'06'           ;                                 |B1
        movwf   ADCON1          ; turn ADC module off             |B1
        movlw   b'11111111'     ;                                 |B1
        movwf   TRISA           ; set Port A all inputs           |B1
        clrf    TRISB           ; set Port B all outputs          |B1
;
;  setup INTOSC for 8-MHz and wait for oscillator to stabilize
;
        movlw   b'01110000'     ;                                 |B1
        movwf   OSCCON          ; 8-mhz INTOSC system clock       |B1
STABLE  btfss   OSCCON,IOFS     ; oscillator stable?              |B1
        goto    STABLE          ; no, branch                      |B1
        bcf     STATUS,RP0      ; bank 0                          |B0
;
;  Initialize RS-232 Serial I/O
;
        call    Init232         ; Initialize RS-232 Serial I/O    |B0
;
;  _Title macro - home cursor, clear screen, and print a string
;
        _Title  "K8LH 16F819 Full Duplex Serial I/O Demo\r\n\n"
;
;  Echo characters coming from Hyperterminal...
;
TEST    call    Get232          ; receive character               |B0
        call    Put232          ; echo character                  |B0
        goto    TEST            ; loop forever                    |B0
;
;******************************************************************
        end

See also:


file: /Techref/microchip/16F819-rs232-9600-mm.htm, 27KB, , updated: 2005/6/13 18:39, local time: 2020/2/26 06:07,
TOP NEW HELP FIND:
18.206.194.161:LOG IN

 ©2020 These pages are served without commercial sponsorship. (No popup ads, etc...).Bandwidth abuse increases hosting cost forcing sponsorship or shutdown. This server aggressively defends against automated copying for any reason including offline viewing, duplication, etc... Please respect this requirement and DO NOT RIP THIS SITE. Questions?
Please DO link to this page! Digg it! / MAKE!

<A HREF="http://www.massmind.org/Techref/microchip/16F819-rs232-9600-mm.htm"> PIC 16F819 9600 RS232</A>

After you find an appropriate page, you are invited to your to this massmind site! (posts will be visible only to you before review) Just type in the box and press the Post button. (HTML welcomed, but not the <A tag: Instead, use the link box to link to another page. A tutorial is available Members can login to post directly, become page editors, and be credited for their posts.


Link? Put it here:
if you want a response, please enter your email address:
Attn spammers: All posts are reviewed before being made visible to anyone other than the poster.
Did you find what you needed?


Quick, and RELIABLE! RCL-1 RS232 Level Converter in a DB9 backshell only $25.00
Ashley Roll has put together a really nice little unit here. Leave off the MAX232 and keep these handy for the few times you need true RS232!


Welcome to www.massmind.org!



















































  .
