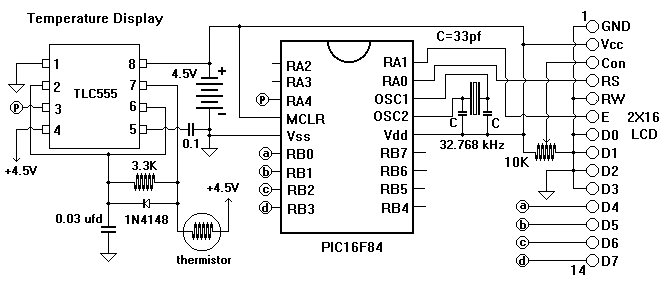

Program #10 - LCD display of Temperature

A Thermometer

We can substitute a thermistor for the 10K pot in program #9 and we have a thermometer. The major problem is calibration of the thermistor. We must make up a table of temperature values for each TMR0 reading we get. You can see the ones I came up with at the end of the program. Just by luck it covered the temperature range I was interested in without changing the prescalar ratio, (it stays at 1:16). The temperatures are degrees Fahrenheit and the low numbers after 99 are 100 and up.

The Thermistor

The thermistor has a room temperature value of about 9K. Peter Anderson, ( http://www.phanderson.com), sells them for \$0.65. He also sells the National LM35DZ thermometer for about \$1.25 that you can use to calibrate the thermistor. You will need something like digital multimeter to read LM35 at 10 mV/ deg F, (just add a battery). I placed the thermistor and thermometer together in a stirred bath of ice water which I let heated up. I took tmr0 readings and temperature about every degree or so. Putting the values in Excel allowed me to fit a quadratic and create a table of temperature vs TMR0 reading. The values occur in two tables with the integer 2 digits in one and the single fractional digit in the other.

Referencing the table

You will notice that I placed the tables at H'200' and H'300'which are the 3rd and 4th pages of '84 program memory. This brings up a problem you may encounter with the program counter. 'Goto' and 'call' can modify the program counter and reach any place in the 16F84's program space. If you modify PCL, ( Program Counter Low byte ), you can make a change of only 256 locations, the size of one page. The high byte of the program counter, the page bits, are not directly available. Any instruction, other than goto or call or return, that modifies PCL also causes the page bits of the program counter to be loaded from a register called PCLATH.

PCLATH seems to be initialized to zero. As long as our table stays in page 0 everything is O.K. If we place our table on another page, we have to preload PCLATH with the page every time we access the table. This is done in the main loop, 'sholoop' where 2 is loaded in to PCLATH before temptable is called. Things get more complicated when a table crosses a page boundary. We simplify things by making sure our table stays within one page.

Accuracy

The thermometer is probably not very accurate. The LM35DZ I used could have been off although it did read 31.9 deg F in the ice bath. The quadratic deviates from the real curve at the upper and lower end. It gives a ice point value 2 degrees high, (TMR0 value at ice point was 65). Higher order polynominals seemed to wiggle around too much. You can probably come up with a better fit and something to check the LM35.

```;-------------------------------------------------------------------------;
;      THERM.ASM     Shows Temperature from Thermistor on LCD             ;
;-------------------------------------------------------------------------;

LIST P=16F84           ;  16F84 Runs at 4 MHz
INCLUDE "p16f84.inc"
__CONFIG _PWRTE_ON & _LP_OSC & _WDT_OFF  ; uses 32.768 kHz crystal
ERRORLEVEL -224        ;  supress annoying message because of tris
ERRORLEVEL -302        ;  supress message because of page change

;  Define Information
#DEFINE RS PORTA, 0          ;  RA0 is RS line of LCD
#DEFINE E  PORTA, 1          ;  RA1 is E line of LCD
;  RB0-RB3 are D4-D7 of LCD
;  Macro

EStrobe MACRO                   ;  Strobe the "E" Bit
bsf    E
bcf    E
ENDM

CBLOCK     0CH
Temp            ; a temporary variable
count           ; counter
bin             ; binary number to be converted to BCD
hundreds        ; BCD hundreds result
tens_and_ones   ; BCD tens and ones result
savetmr0        ; used to save value of tmr0
dispvalue       ; used to hold temperature to be displayed
tableindex      ; points to table value to display
ENDC

ORG 0               ; start at location 0

goto main           ; jump over to main routine

;-------------------------------------------------------------------------;
;                    Data for message to be output                        ;
;-------------------------------------------------------------------------;
shomsg:                         ;  Message to Output
addwf  PCL, f                 ;  Output the Characters
m0  dt     "TMR0 Value:", 0
m1  dt     "Temperature", 0

;-------------------------------------------------------------------------;
;                        Ratios of Prescaler                              ;
;-------------------------------------------------------------------------;
preratio:
addwf  PCL, f                 ;  select offset using W
dt     D'2',D'4',D'8',D'16',D'32',D'64',D'128'

;-------------------------------------------------------------------------;
;                       Initialize the ports                              ;
;-------------------------------------------------------------------------;
Init:
clrf   PORTA
clrf   PORTB

movlw B'00010000'          ; RA4 input, others outputs
tris PORTA
movlw B'00110000'          ; RB4, RB5 input, others outputs
tris PORTB
movlw B'00100011'          ; pull-ups enabled
; prescaler assigned to RA4
; prescaler set to 1:16
option
return

;-------------------------------------------------------------------------;
;                 Initialize the LCD                                      ;
;-------------------------------------------------------------------------;
initlcd:
movlw D'40'
call   nmsec                  ;  Wait 40 msecs before Reset
bcf    RS                     ;  send an 8 bit instruction
movlw  0x03                   ;  Reset Command
call   NybbleOut              ;  Send the Nybble
call   Dlay5                  ;  Wait 5 msecs before Sending Again
EStrobe
nop
nop                           ;  Wait 244 usecs before Sending the Second Time
EStrobe
nop
nop                           ;  Wait 244 usecs before Sending the Third Time
bcf    RS                     ; send an 8 bit instruction
movlw  0x02                   ;  Set 4 Bit Mode
call   NybbleOut
nop
nop
movlw  0x028                  ;  4 bit, 2 Line, 5x7 font
call   SendINS
movlw  0x010                  ;  display shift off
call   SendINS
movlw  0x001                  ;  Clear the Display RAM
call   SendINS
call   Dlay5                  ;  Note, Can take up to 4.1 msecs
movlw  0x006                  ;  increment cursor
call   SendINS
movlw  0x00C                  ;  display on cursor off
call   SendINS
return

;-------------------------------------------------------------------------;
;              Send the character in W out to the LCD                     ;
;-------------------------------------------------------------------------;
SendASCII
addlw '0'                     ;  Send nbr as ASCII character
SendCHAR                        ;  Send the Character to the LCD
movwf  Temp                   ;  Save the Temporary Value
swapf  Temp, w                ;  Send the High Nybble
bsf    RS                     ;  RS = 1
call   NybbleOut
movf   Temp, w                ;  Send the Low Nybble
bsf    RS
call   NybbleOut
return

;-------------------------------------------------------------------------;
;              Send an instruction in W out to the LCD                    ;
;-------------------------------------------------------------------------;
SendINS                         ;  Send the Instruction to the LCD
movwf  Temp                   ;  Save the Temporary Value
swapf  Temp, w                ;  Send the High Nybble
bcf    RS                     ;  RS = 0
call   NybbleOut
movf   Temp, w                ;  Send the Low Nybble
bcf    RS
call   NybbleOut
return

;-------------------------------------------------------------------------;
;              Send the nibble in W out to the LCD                        ;
;-------------------------------------------------------------------------;
NybbleOut                       ;  Send a Nybble to the LCD
movwf  PORTB
EStrobe                       ;  Strobe out the LCD Data
nop
nop
return

;-------------------------------------------------------------------------;
;                   Output the message on the LCD                           ;
;-------------------------------------------------------------------------;
OutMessage:
movwf  FSR                    ;  Point at first letter
OutLoop:
movf   FSR, w                 ;  Get pointer into W
incf   FSR, f                 ;  Set up for next letter
call   shomsg                 ;  Get character to output
iorlw  0                      ;  At the End of the Message?
btfsc  STATUS, Z              ;  Skip if not at end
return                        ;  Yes - Equal to Zero
call   SendCHAR               ;  Output the ASCII Character
goto   OutLoop                ;  Get the next character

;-------------------------------------------------------------------------;
;                  Change binary nbr in bin to BCD                        ;
;-------------------------------------------------------------------------;
binary_to_bcd                     ; by Scott Dattalo
clrf hundreds
swapf bin, W
andlw B'00001111'
skpndc
skpndc
skpdc
btfsc bin,4
addlw 0x16 - 1 + 0x6
skpdc
btfsc bin,5
btfsc bin, 6
btfsc bin,7
rlf hundreds, f
btfss hundreds, 0
movwf tens_and_ones
btfsc bin,7
incf hundreds, f
return

;-----------------------------------------------------------------------;
;                           Delay routine                               ;
;-----------------------------------------------------------------------;
msec250  movlw 0               ; 250 msec delay (adjusted to try and
; allow for 2.5% low loop time)
goto \$+2
Dlay5    movlw 5               ; delay for 5 milliseconds
nmsec:                         ; delay for # msec in W on entry
nop                   ; each nop is 0.122 milliseconds
nop
nop                   ; each total loop is 8 X 0.122 = 0.976 msec
nop
addlw H'FF'           ; same as subtracting 1 from W
btfss STATUS, Z       ; skip if result is zero
goto nmsec            ; this is  2 X 0.122 msec
return                ; back to calling point

;-------------------------------------------------------------------------;
;                Display binary value in W in decimal                     ;             ;
;-------------------------------------------------------------------------;
DispDec
movwf bin
call binary_to_bcd
movf hundreds, W
call SendASCII
swapf tens_and_ones, W
andlw H'F'
call SendASCII
movf tens_and_ones, W
andlw H'F'
call SendASCII
return

;-------------------------------------------------------------------------;
;                           The Main routine                              ;
;-------------------------------------------------------------------------;
main:
call Init               ; initialize ports, set up timer
call initlcd            ; initialize the LCD
movlw H'80'             ; position at 1st line column 0
call SendINS
movlw m0 -2             ; send 'TMR0 Value:' message
call OutMessage
movlw H'C0'
call SendINS            ; position at 2nd line column 0
movlw m1 -2             ; send 'Temperature:' message
call OutMessage
sholoop:
movlw H'8C'             ; position at 1st line column 12
call SendINS
bcf INTCON, T0IF        ; clear timer zero interrupt flag
clrf TMR0               ; zero TMR0
call msec250            ; wait a total of one second
call msec250
call msec250
call msec250
movf TMR0, W            ; retrieve timer zero
movwf savetmr0          ; save the value
btfsc INTCON, T0IF      ; check if timer overflowed
goto overload           ; yes, display 'OVR'
call DispDec            ; display TMR0 value
movlw H'CC'             ; position at  2nd line column 12
call SendINS
movlw 2                 ; set up PCLATH to page 2
movwf PCLATH
movlw D'64'             ; 1st table value is for tmr0 = 64
subwf savetmr0, W       ; subtract 64 from tmr0 value
movwf tableindex
call temptable1          ; get 1st two digits of temperature
movwf dispvalue         ; save it in display value
swapf dispvalue, W      ; get hi nibble in W
andlw H'0F'             ; lowest 4 bits
call SendASCII          ; display it
movf dispvalue, W       ; get lo nibble in W
andlw H'0F'             ; lowest 4 bits
call SendASCII          ; display it
movlw '.'               ; send decimal point
call SendCHAR
movlw 3                 ; set up for second table, (page 3)
movwf PCLATH
movf tableindex, W
call temptable2         ; get decimal point
call SendASCII          ; display it
goto sholoop            ; repeat forever
movlw 'O'               ; output 'OVER'
call SendCHAR
movlw 'V'
call SendCHAR
movlw 'E'
call SendCHAR
movlw 'R'
call SendCHAR
movlw ' '
call SendCHAR
goto sholoop            ; and continue

org H'200'
temptable1:                     ; get temperature to display
dt 33,34,34,35,35,36,36,37,37,38,38,39,39,40,40,40,41,41,42,42,43
dt 43,44,44,45,45,46,46,46,47,47,48,48,49,49,50,50,50,51,51,52,52
dt 53,53,53,54,54,55,55,56,56,56,57,57,58,58,58,59,59,60,60,60,61
dt 61,62,62,62,63,63,64,64,64,65,65,66,66,66,67,67,67,68,68,69,69
dt 69,70,70,70,71,71,72,72,72,73,73,73,74,74,74,75,75,75,76,76,77
dt 77,77,78,78,78,79,79,79,80,80,80,81,81,81,81,82,82,82,83,83,83
dt 84,84,84,85,85,85,86,86,86,86,87,87,87,88,88,88,89,89,89,89,90
dt 90,90,91,91,91,91,92,92,92,92,93,93,93,94,94,94,94,95,95,95,95
dt 96,96,96,96,97,97,97,97,98,98,98,98,99,99,99,99,99,00,00,00,00
dt 00,01,01,01
org H'300'
temptable2:
dt 7,2,7,2,7,2,6,1,6,1,5,0,5,0,4,9,4,8,3,8,2,7,1,6,1,5,0,4
dt 9,3,8,2,6,1,5,0,4,8,3,7,2,6,0,4,9,3,7,1,6,0,4,8,2,7,1,5
dt 9,3,7,1,5,9,3,7,1,5,9,3,7,1,5,9,3,7,0,4,8,2,6,9,3,7,1,4
dt 8,2,6,9,3,7,0,4,4,7,1,5,8,2,5,9,2,6,9,3,6,0,3,6,0,3,7,0
dt 3,7,0,3,6,0,3,6,9,3,6,9,2,5,8,2,5,8,1,4,7,0,3,6,9,2,5,8
dt 1,4,7,0,3,5,8,1,4,7,0,2,5,8,1,3,6,9,2,4,7,0,2,5,7,0,3,5
dt 8,0,3,5,8,0,3,5,8,0,3,5,7,0,2,4,7,9,1,4,6,8,0,3,5

end
```
