The step-down converter
(MC34063A)

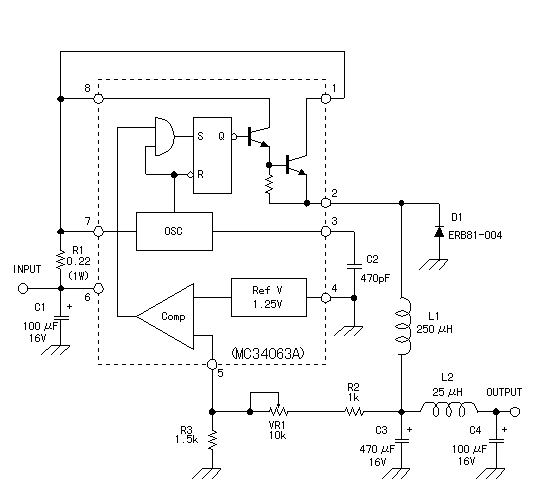

The step down converter is the power unit to make the output voltage which is lower than the input voltage. The converter which was made this time makes +2V to +10V output voltage with the input voltage of +12V. Because it makes the limitation value of the input electric current about 1.3A, the maximum with the input electric power is about 16W.
