The voltage change by the load change
The output of this converter is fixed on +30 V. I measured the voltage change when I make the consumption electric power big(When making the load resistance value small).
The constant voltage could be output even if it passed the about 25-mA output current.

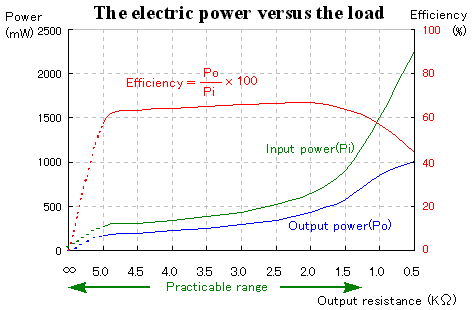

The electric power and the efficiency change by the load change
The efficiency with the electric power was about 65%.
