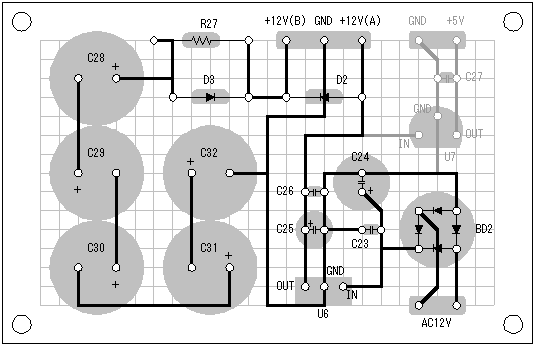

Pattern drawing of Power unit
for Radio Controlled Clock
(Wiring side)



A +5V circuit in the upper right of the drawing was provided for the backlight of the LCD.
However, it isn't used because a power is supplied inside the LCD.
