Making completion of RCC

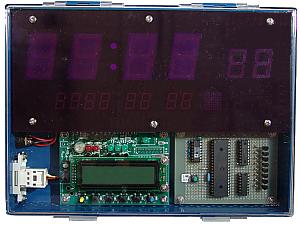

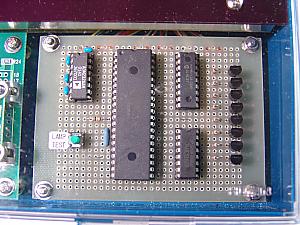

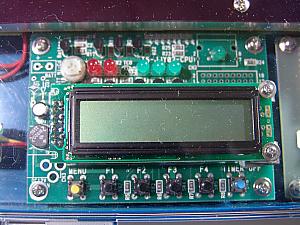

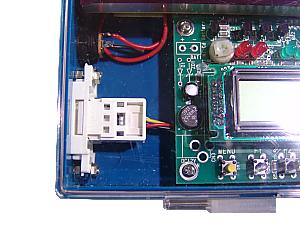

This is the photograph of the clock which attached all composition articles and was completed. In the left-hand side side of the case, there is a RJ-45 connector linked to the receiver unit and there is a power connector in the upper part. This is a CPU unit. This is a display control unit. The clock is made to be hung with a chain on a wall. The length of the chain can be adjusted using S character metallic ornaments.
