Enhanced Metafiles in Win32

Dennis Crain
Microsoft Developer Network Technology Group

Created: June 10, 1993

Abstract

With the advent of the Microsoft® Win32™ Application Programming Interface (API), a new metafile format called enhanced metafiles has been introduced. The overall design goal of the enhanced metafile was to describe a picture without any coding restrictions and to make a metafile easier to use. Enhanced metafiles have many advantages over the older Windows metafiles found in Microsoft Windows™ version 3.1 (Win16). Improvements found in the enhanced metafile include an expanded header, a description string, a metafile palette, and an increase in the number and type of graphics device interface (GDI) functions that may be recorded. In addition to these enhancements, the metafile record and playback code in Win32 has been designed to remove all of the restrictions that applied to Windows metafiles with respect to scaling, clipping, embedding, and querying, among others. To top it off, enhanced metafiles may be played on any device in a device-independent manner. This article describes the differences between Windows metafiles and enhanced metafiles. Sample code that illustrates the basic concepts of creating and playing enhanced metafiles is provided at the end of this article.

Introduction

The tried-and-true Microsoft® Windows™ metafile has been an invaluable aid to the development of numerous drawing and presentation applications for Windows. However, the "vanilla" Windows metafile did not address issues related to scalability and device independence. Left on their own, developers attempted to address this issue in various ways. Some developers embedded application, location, or scaling comments in the metafiles. This resulted in extremely nonportable metafiles. Others added headers to the metafile that provided various application-specific information. The net result of most of these efforts was, once again, nonportable metafiles. However, one of these endeavors—placeable metafiles—caught on. Developed by Aldus Corporation, placeable metafiles include a 22-byte header that provides, among other things, mapping and measurement information that can be used to scale the metafile.

The proliferation of the placeable metafile, other homegrown formats, and the confusion of many developers regarding the use of metafiles led to a demand for a metafile format that addressed all of the development community's needs. Thus the Win32 enhanced metafile was born. Developed by Microsoft, the enhanced metafile distinguishes itself from the Windows metafile in that it is device-independent and much easier to use. Easier to use? You bet! Remember having to code two paths to deal with drawing? One code path drew to the screen; the second code path drew to metafiles. The only way to get around this was to use a subset of graphics device interface (GDI) functions that used logical coordinates. Although this permitted limited scaling capabilities, it restricted the use of many helpful GDI functions. You definitely couldn't query the metafile device context (DC) for information such as window origins and extents. With the advent of the enhanced metafile, those restrictions are unnecessary! A single code path is all that is required to draw to any DC, whether it be a metafile, screen, or printer DC. Furthermore, you no longer need to use a subset of GDI; for example, you can now do the following:

DeleteObject(SelectObject(hdcMeta, hbrOldBrush));

Yes, the old object versus TRUE or FALSE is returned by SelectObject when used with a metafile DC. This was not possible with Windows metafiles and is a good indication of the potential for success of the enhanced metafile. Finally, in an enhanced metafile, you can query the current position in the client area.

But what about all of those Windows metafiles? There are thousands of them in the marketplace. It would be a shame to see them go to waste. With this in mind, Win32 functions were written that convert Windows metafiles to enhanced metafiles. However, enhanced metafiles cannot be used in Win16. Figure 1 illustrates the compatibility of the two metafile formats and environments.

Figure 1. Metafile compatibility in the Win16 and Win32 environments

This article discusses the differences between the Windows metafile and the enhanced metafile, the format of the enhanced metafile, its features, and techniques for its use.

Windows Metafiles vs. Enhanced Metafiles

A Windows metafile is used for applications written using the Windows version 3.x application programming interface (API). The format of a Windows metafile consists of a header and an array of metafile records. Windows metafiles are limited in their capabilities and should rarely be used in Win32-based applications. That being said, the Windows metafile functions are supported in Win32 to maintain backward compatibility with applications that use the older Windows metafiles.

An enhanced metafile is used in applications written using the Win32 API. (Win32s™, however, does not implement enhanced metafiles.) The enhanced format consists of a header, a table of handles to GDI objects, a private palette, and an array of metafile records. Enhanced metafiles provide true device independence. You can think of the picture stored in an enhanced metafile as a snapshot of the video display taken at a particular moment. This snapshot maintains its dimensions no matter where it appears: on a printer, a plotter, the desktop, or in the client area of any Win32-based application.

Metafile Structure

At first glance, Windows metafiles and enhanced metafiles share the same overall structure. They are an array of variable-length structures called metafile records. The first records in the metafile specify general information such as the resolution of the device on which the picture was created, the dimensions of the picture, and so on. The remaining records, which constitute the bulk of any metafile, correspond to the GDI functions required to draw the picture.

A closer inspection reveals a number of differences between them, as shown in Figure 2. Unlike the Windows metafile, the enhanced metafile has a different header and may include a description string and an optional palette stored in a special end-of-file record. The enhanced metafile also provides support for additional types of records.

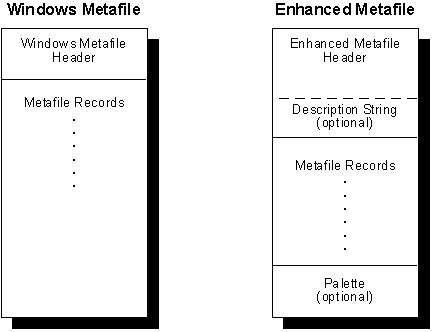

Figure 2. Structure of a Windows metafile and an enhanced metafile

Enhanced metafile header

The major difference between the Windows metafile header and the enhanced metafile header is that the Windows metafile header contains only size and version information, whereas the enhanced metafile header contains dimension and resolution information, as well as size and version information. The Windows metafile header has the following form:

typedef struct tagMETAHEADER {
    WORD  mtType;
    WORD  mtHeaderSize;
    WORD  mtVersion;
    DWORD mtSize;
    WORD  mtNoObjects;
    DWORD mtMaxRecord;
    WORD  mtNoParameters;
} METAHEADER;

In contrast, notice the added dimension and resolution information in the code for an enhanced metafile header below. This information is used by the metafile playback functions to achieve device independence.

typedef struct tagENHMETAHEADER
{
  DWORD   iType;           // Record type EMR_HEADER.
  DWORD   nSize;           // Record size in bytes. This may be greater
                           // than the sizeof(ENHMETAHEADER).
  RECTL   rclBounds;       // Inclusive-inclusive bounds in device units.
  RECTL   rclFrame;        // Inclusive-inclusive Picture Frame of
                           // metafile in .01 mm units.
  DWORD   dSignature;      // Signature.  Must be ENHMETA_SIGNATURE.

  DWORD   nVersion;        // Version number.
  DWORD   nBytes;          // Size of the metafile in bytes.
  DWORD   nRecords;        // Number of records in the metafile.
  WORD    nHandles;        // Number of handles in the handle table.
                           // Handle index zero is reserved.
  WORD    sReserved;       // Reserved.  Must be zero.
  DWORD   nDescription;    // Number of chars in the unicode description string.
                           // This is 0 if there is no description string.

  DWORD   offDescription;  // Offset to the metafile description record.
                           // This is 0 if there is no description string.
  DWORD   nPalEntries;     // Number of entries in the metafile palette.
  SIZEL   szlDevice;       // Size of the reference device in pixels.
  SIZEL   szlMillimeters;  // Size of the reference device in millimeters.
} ENHMETAHEADER;

A good question at this point might be, "How much of the header information in the enhanced metafile do I need to provide?" When you call CreateEnhMetafile, you provide a long pointer to a rectangle that specifies the picture frame, and you provide a DC that serves as a reference. The members szlDevice and szlMillimeters are derived from the reference DC. You can also provide a long pointer to a string that describes the metafile.

rclFrame

The picture frame is stored in the metafile header structure member rclFrame. When you create the metafile using CreateEnhMetaFile, a pointer to a RECT structure (lpRect) is among the parameters. It is this rectangle that specifies the picture frame. The left and top members of the RECT structure must be values less than the right and bottom members, respectively. Points along the edges of the rectangle are included in the picture. If lpRect is NULL, GDI computes the dimensions of the smallest rectangle that surrounds the picture. The lpRect parameter should be provided whenever possible.

nDescription and offDescription

Information regarding the description string is maintained in two structure members of the metafile header, nDescription and offDescription. This string is also specified when you create the metafile using CreateEnhMetaFile. The lpDescription parameter contains the address of the description string. When the metafile is created, the length of the description string is stored in the metafile header. When the metafile is closed, GDI writes the string to the metafile and updates offDescription in the header.

nPalEntries

As palettes are created and selected into a metafile DC, GDI accumulates the palette entries and places them in a "metafile palette." This palette is located in the EMR_EOF record. An application can store the palette in an enhanced metafile by calling either the CreatePalette or SetPaletteEntries function and the SelectPalette function before creating the picture. nPalEntries is updated as the palette is collected in the metafile palette.

Enhanced metafile records

The Windows metafile record and the enhanced metafile record are similar in structure and size (see code below). However, before breathing a sigh of relief, take a closer look at the record structure. The size and type members are reversed. This could be a potential pitfall when porting existing 16-bit Windows-based applications to Win32. Take note that the array of parameters is now an array of DWORD values to accommodate the 32-bit girth of GDI.

typedef struct tagMETARECORD
  {
    DWORD       rdSize;        // Record size in bytes
    WORD        rdFunction;    // Record type META_XXX
    WORD        rdParm[1];     // WORD array of parameters
  } METARECORD;


typedef struct tagENHMETARECORD
{
    DWORD   iType;              // Record type EMR_XXX
    DWORD   nSize;              // Record size in bytes
    DWORD   dParm[1];           // DWORD Array of parameters
} ENHMETARECORD;

Several new metafile records have been added to an already extensive list of records. Table 1 lists the records found in enhanced metafile records with their corresponding iType values, which can be found in WINGDI.H. Some of the records seem to be similar, for example, EMR_EXTTEXTOUTA and EMR_EXTTEXTOUTW. The A specifies that the text is based on ANSI and the W indicates that it is based on UNICODE. Another similar pair is EMR_POLYLINE and EMR_POLYLINE16. The 16 indicates that GDI has converted the points for PolyLine to 16 bits for the purpose of saving space in the metafile.

Table 1. Enhanced Metafile Records

Record Value Record Value
EMR_ABORTPATH 68 EMR_POLYLINE 4
EMR_ANGLEARC 41 EMR_POLYLINE16 87
EMR_ARC 45 EMR_POLYLINETO 6
EMR_ARCTO 55 EMR_POLYLINETO16 89
EMR_BEGINPATH 59 EMR_POLYPOLYGON 8
EMR_BITBLT 76 EMR_POLYPOLYGON16 91
EMR_CHORD 46 EMR_POLYPOLYLINE 7
EMR_CLOSEFIGURE 61 EMR_POLYPOLYLINE16 90
EMR_CREATEBRUSHINDIRECT 39 EMR_POLYTEXTOUTA 96
EMR_CREATEDIBPATTERNBRUSHPT 94 EMR_POLYTEXTOUTW 97
EMR_CREATEMONOBRUSH 93 EMR_REALIZEPALETTE 52
EMR_CREATEPALETTE 49 EMR_RECTANGLE 43
EMR_CREATEPEN 38 EMR_RESIZEPALETTE 51
EMR_DELETEOBJECT 40 EMR_RESTOREDC 34
EMR_ELLIPSE 42 EMR_ROUNDRECT 44
EMR_ENDPATH 60 EMR_SAVEDC 33
EMR_EOF 14 EMR_SCALEVIEWPORTEXTEX 31
EMR_EXCLUDECLIPRECT 29 EMR_SCALEWINDOWEXTEX 32
EMR_EXTCREATEFONTINDIRECTW 82 EMR_SELECTCLIPPATH 67
EMR_EXTCREATEPEN 95 EMR_SELECTOBJECT 37
EMR_EXTFLOODFILL 53 EMR_SELECTPALETTE 48
EMR_EXTSELECTCLIPRGN 75 EMR_SETARCDIRECTION 57
EMR_EXTTEXTOUTA 83 EMR_SETBKCOLOR 25
EMR_EXTTEXTOUTW 84 EMR_SETBKMODE 18
EMR_FILLPATH 62 EMR_SETBRUSHORGEX 13
EMR_FILLRGN 71 EMR_SETCOLORADJUSTMENT 23
EMR_FLATTENPATH 65 EMR_SETDIBITSTODEVICE 80
EMR_FRAMERGN 72 EMR_SETMAPMODE 17
EMR_GDICOMMENT 70 EMR_SETMAPPERFLAGS 16
EMR_HEADER 1 EMR_SETMETARGN 28
EMR_INTERSECTCLIPRECT 30 EMR_SETMITERLIMIT 58
EMR_INVERTRGN 73 EMR_SETPALETTEENTRIES 50
EMR_LINETO 54 EMR_SETPIXELV 15
EMR_MASKBLT 78 EMR_SETPOLYFILLMODE 19
EMR_MODIFYWORLDTRANSFORM 36 EMR_SETROP2 20
EMR_MOVETOEX 27 EMR_SETSTRETCHBLTMODE 21
EMR_OFFSETCLIPRGN 26 EMR_SETTEXTALIGN 22
EMR_PAINTRGN 74 EMR_SETTEXTCOLOR 24
EMR_PIE 47 EMR_SETVIEWPORTEXTEX 11
EMR_PLGBLT 79 EMR_SETVIEWPORTORGEX 12
EMR_POLYBEZIER 2 EMR_SETWINDOWEXTEX 9
EMR_POLYBEZIER16 85 EMR_SETWINDOWORGEX 10
EMR_POLYBEZIERTO 5 EMR_SETWORLDTRANSFORM 35
EMR_POLYBEZIERTO16 88 EMR_STRETCHBLT 77
EMR_POLYDRAW 56 EMR_STRETCHDIBITS 81
EMR_POLYDRAW16 92 EMR_STROKEANDFILLPATH 63
EMR_POLYGON 3 EMR_STROKEPATH 64
EMR_POLYGON16 86 EMR_WIDENPATH 66

Of the records listed in Table 1, two are present in every enhanced metafile. The first record in any enhanced metafile is the metafile header. The value of this record is EMR_HEADER (1). The last record of an enhanced metafile is always the end-of-file record. The value of this record is EMR_EOF (14).

In addition to the enhanced metafile header and metafile records, two additional pieces of data may be found in an enhanced metafile. The optional description string follows the enhanced metafile header. An optional color palette, if it exists, is contained in a special enhanced metafile record, the EMR_EOF record. The EMR_EOF is present even when a palette is not available.

Description string

Have you ever just wanted to know what was in a given metafile without having to decipher a cryptic filename or play back the entire metafile? The enhanced metafile provides an optional description string that provides exactly this information. In addition to a descriptive name, the string specifies the name of the application that created the picture. The string must contain a null character between the application name and the picture name. It must terminate with two null characters; for example, "ACME Inc.\0Rocket Skates\0\0", where \0 represents the null character. If lpDescription is NULL, there is no corresponding entry in the header of the enhanced metafile. If the description string is present, it is found offDescription bytes from the beginning of the ENHMETAHEADER structure. The array found at that offset contains nDescription characters. A convenient way to obtain the description string is to use the GetEnhMetaFileDescription function.

Color palette

When a palette was required in a Windows metafile, you recorded a CreatePalette, SelectPalette, and RealizePalette sequence. When the Windows metafile was played back, the palette was selected as a foreground palette. The realization of the foreground palette typically resulted in odd screen behavior as the other palettes went to the background. With enhanced metafiles, palette sequences may still be recorded, but they are never selected and realized as foreground palettes when they are subsequently played back. These palette functions serve only to build the metafile palette. Enhanced metafiles place this optional palette in the metafile end-of-file record (EMR_EOF). Although the palette is optional, there are advantages to using it. One palette may be generated and used for the duration of the playback, thus avoiding the problems associated with foreground and background palette changes. The optional palette also makes it easier for a palette-oriented application to examine the metafile colors and merge them with an existing palette. The easiest way to get the palette is to call GetEnhMetaFilePaletteEntries. However, you can locate the palette yourself if you wish. First, determine whether there is a palette. This is done by examining nPalEntries in the enhanced metafile header or in the last record of the metafile, the EMR_EOF record (see code below).

typedef struct tagEMREOF
{
    EMR     emr;            // Base enhanced metafile record.
    DWORD   nPalEntries;    // Number of palette entries.
    DWORD   offPalEntries;  // Offset to the palette entries.
    DWORD   nSizeLast;      // Same as emr.nSize and must be the
                            // last DWORD of the record.  The palette
                            // entries, if they exist, precede this field.
} EMREOF;

If this value is greater than zero, a palette is present. The nSizeLast member of the EMR_EOF record indicates how many bytes to seek back to find the beginning of the EMR_EOF record. Seek forward from this point by offPalEntries, and bingo! you have a palette location. After having used either method to obtain the palette, you can simply select the palette into the destination DC, realize it, and then play back the metafile.

Device Independence

Achieving device independence was very difficult, if not impossible, with Windows metafiles. The placeable variant of the Windows metafile provided the best shot at this. The additional header provided in the placeable metafile (see code below) provided an opportunity for an application to render these metafiles in a device-relative way.

typedef struct tagPLACEABLEMETAFILEHEADER {
    DWORD   key;
    HANDLE  hmf;
    RECT    bbox;
    WORD    inch;
    DWORD   reserved;
    WORD    checksum;
} PLACEABLEMETAFILEHEADER;

Device independence was typically achieved by setting the mapping mode to anisotropic, setting the viewport extents to the physical dimensions of the device, and finally setting the windows extents to the product of the device's physical dimensions (in inches) and the metafile units per inch (contained in the inch member of the header structure). The biggest problem with this approach was that variants of the placeable Windows metafile began surfacing. Often the mapping mode and viewport extents were included in the metafile as records. This necessitated enumerating the metafile as a method of filtering out undesirable records. Unfortunately, the bounding box and metafile units per inch often did not match the environment being set by the undesirable metafile records! This led to the situation in which even the placeable metafiles were, once again, application-specific.

Device independence is a key feature of enhanced metafiles. The Microsoft Win32 Software Development Kit (SDK) for Windows NT Programmer's Reference: Overviews states that "...when an application creates a picture measuring 2 inches by 4 inches on a VGA display and stores that picture in a metafile, it (the picture) will maintain those original dimensions when it is printed on a 300 dpi laser printer or copied over a network and displayed in another application that is running on an 8514/A video display." So, just how is this done? The key to achieving this device independence is the use of a reference device context, that is, the context of the device on which the picture was created. When a metafile is created, information regarding the reference DC is placed in the enhanced metafile header. More specifically, GDI calls GetDeviceCaps and assigns the HORZSIZE and VERTSIZE return values to szlMillimeters and assigns the HORZRES and VERTRES return values to szlDevice. The rclFrame member is assigned the bounding rectangle specified in the lpRect parameter of CreateEnhMetaFile. If lpRect is NULL, GDI determines the bounding rectangle and assigns it to rclFrame. This information is sufficient to enable the playback functions to provide device independence. When a metafile is played back, the picture undergoes a series of transformations that scale and translate the picture to the output rectangle that was specified in the call to the PlayEnhMetaFile or EnumEnhMetaFile playback functions. These transformations rely on the dimensions of the picture frame (rclFrame), the dimensions of the device upon which the metafile was created (szlMillimeters and szlDevice), and the world-to-page transform values currently set in the destination DC.

Compatibility

Although it is not recommended, Windows metafiles can be used with Win32-based applications. Unfortunately, enhanced metafiles cannot be used in Windows version 3.x. The Win32 API provides these familiar-sounding functions that manipulate Windows metafiles:

CloseMetaFile Closes a Windows metafile DC.
CopyMetaFile Copies a Windows metafile.
CreateMetaFile Creates a Windows metafile DC.
DeleteMetaFile Invalidates Windows metafile handle.
EnumMetaFile Returns GDI calls within a Windows metafile.
EnumMetaFileProc Processes metafile data.
GetMetaFile Creates a Windows metafile.
GetMetaFileBitsEx Copies Windows metafile bits to a buffer.
PlayMetaFile Plays a Windows metafile to a DC.
PlayMetaFileRecord Plays a Windows metafile record.
SetMetaFileBitsEx Creates a memory-based Windows metafile from data.
GetMetaFileBits Obsolete; use GetMetaFileBitsEx.
SetMetaFileBits Obsolete; use SetMetaFileBitsEx.

In addition to providing functions that enable the use of Windows metafiles, the Win32 API also provides functions to convert Windows metafiles into enhanced metafiles. These include the following functions:


GetWinMetaFileBits Retrieves enhanced metafile contents in Windows format.
SetWinMetaFileBits Creates enhanced metafile from Windows metafile data.

Pulling It All Together

At this point, the differences between a Windows metafile and an enhanced metafile should be clear:

· The enhanced metafile header is larger and more complete than a Windows metafile.

· The enhanced metafile may contain a description string or a palette.

· The enhanced metafile achieves device independence by means of a reference DC and special transformations in the playback functions.

A quick look at the enhanced metafile functions and some example code should help clarify the features of enhanced metafiles.

Enhanced Metafile Functions

The following functions are very similar to the functions used for Windows metafiles. The differences that exist do so to accommodate new features of enhanced metafiles.

CloseEnhMetaFile Closes an enhanced metafile DC.
CopyEnhMetaFile Copies an enhanced metafile.
CreateEnhMetaFile Creates an enhanced metafile DC.
DeleteEnhMetaFile Invalidates enhanced metafile handle.
EnhMetaFileProc Processes enhanced metafile data.
EnumEnhMetaFile Returns GDI calls within an enhanced metafile.
GdiComment Adds a comment to an enhanced metafile.
GetEnhMetaFile Creates an enhanced metafile.
GetEnhMetaFileBits Copies enhanced metafile bits to a buffer.
GetEnhMetaFileDescription Returns creator and title for enhanced metafile.
GetEnhMetaFileHeader Returns enhanced metafile header.
GetEnhMetaFilePaletteEntries Returns enhanced metafile palette entries.
PlayEnhMetaFile Plays an enhanced metafile to a DC.
PlayEnhMetaFileRecord Plays an enhanced metafile record.
SetEnhMetaFileBits Creates a memory-based enhanced metafile from data.

GdiComment

GdiComment deserves a little elaboration. When a comment was needed in a Windows metafile, the MFCOMMENT printer escape was used. These comments were restricted to private data only. The MFCOMMENT printer escape cannot be used in enhanced metafiles. Escapes, in general, cannot be used in enhanced metafiles because they would introduce device dependence, which is in direct opposition to the goal of device independence. Realizing that there is still a place for private data in metafiles, the architects of the Win32 API made GdiComment available for embedding private information in enhanced metafiles. But GdiComment is more than simply an alternative to MFCOMMENT. It was designed to enable public comments as well. The currently supported public comments include:

· GDICOMMENT_WINDOWS_METAFILE

· GDICOMMENT_BEGINGROUP

· GDICOMMENT_ENDGROUP

· GDICOMMENT_MULTIFORMATS

The use of public comment permits embedding of other metafiles and encapsulated PostScript (EPS) files within the metafile. The multiformat public comment is the most exciting of the comments. (I must be losing touch with reality!) If an EPS file is embedded in an enhanced metafile and subsequently played back, GDI will select the best format for the device! Transparently! When I first heard about the multiformat comment, I was sure that I was going to be expending a great deal of effort writing code for rendering EPS files. I was relieved to find out how wrong I was!

Coding Examples

The example code in the following sections demonstrates the creation and playback of an enhanced metafile, illustrating how some of these functions are used. (These examples are pared-down versions of examples in the Win32 documentation.)

Creating an enhanced metafile

Creating an enhanced metafile is similar to creating a Windows metafile. The code that follows demonstrates the creation of an enhanced metafile that is stored on a disk. The example uses a device context for the application window as the reference DC. The dimensions of the application's client area are used to define the dimensions of the picture frame. Using the rectangle dimensions returned by the GetClientRect function, the example converts the device units to .01-millimeter units and passes the converted values to the CreateEnhMetaFile function. The example also embeds a text description of the picture in the header of the enhanced metafile.

// Obtain a handle to a reference DC.

hdcRef = GetDC(hWnd);

// Determine the picture frame dimensions.
// iWidthMM is the display width in millimeters.
// iHeightMM is the display height in millimeters.
// iWidthPels is the display width in pixels.
// iHeightPels is the display height in pixels.

iWidthMM = GetDeviceCaps(hdcRef, HORZSIZE);
iHeightMM = GetDeviceCaps(hdcRef, VERTSIZE);
iWidthPels = GetDeviceCaps(hdcRef, HORZRES);
iHeightPels = GetDeviceCaps(hdcRef, VERTRES);

// Use iWidthMM, iWidthPels, iHeightMM, and iHeightPels to determine the
// number of .01-millimeter units per pixel in the x and y directions.

iMMPerPelX = (iWidthMM * 100)/iWidthPels;
iMMPerPelY = (iHeightMM * 100)/iHeightPels;

// Retrieve the coordinates of the client rectangle in pixels.

GetClientRect(hWnd, &rect);

// Convert client coordinates to .01-mm units.

rect.left = rect.left * iMMPerPelX;
rect.top = rect.top * iMMPerPelY;
rect.right = rect.right * iMMPerPelX;

rect.bottom = rect.bottom * iMMPerPelY;

// Create the metafile DC.

hdcMeta = CreateEnhMetaFile(hdcRef, (LPTSTR)"MYFILE.EMF", &rect,
                            (LPSTR)"ACME Inc.\0Rocket Skates\0\0");

if (!hdcMeta)
    errhandler("CreateEnhMetaFile", hWnd);

// Release the reference DC.

ReleaseDC(hWnd, hdcRef);

Playing an enhanced metafile

Playing an enhanced metafile is also similar to the method used to play Windows metafiles. The following example demonstrates how to open an enhanced metafile stored on disk, and displays the associated picture in the client area. The example passes the handle returned by the GetEnhMetaFile function to the PlayEnhMetaFile function in order to display the picture. Before diving into the code, consider the following advice about enumeration of the metafile and some tips on how to maximize the advanced features of the GDI metafile player.

Using EnumEnhMetaFile

It's common practice to enumerate Windows metafiles, rather than simply to play them back, to achieve better control over positioning, scaling, getting access to application-specific comments, or manipulating the palette records. However, the improvements to enhanced metafiles reduce the need for enumeration of the metafile. In Win32, most applications need to use only PlayEnhMetaFile unless they need to edit the enhanced metafile by adding, deleting, or modifying records, in which case they'd use EnumEnhMetaFile.

Advanced features

Three advanced features of enhanced metafiles require action by the application before playing the metafile to the destination DC:

· Advanced palette functionality

· Advanced clipping capabilities

· World-to-page transform values

The advanced palette functionality provides a means of examining the palette before playing the metafile. This is useful if the palette is to be merged with another or optimized before the enhanced metafile is played or enumerated. If the metafile palette is to be used, it must be retrieved (GetEnhMetaFilePaletteEntries), manipulated as desired, created, selected, and realized in the destination DC.

The advanced clipping capabilities permit the enhanced metafile to be clipped to a predetermined clipping region. To accomplish this, the metafile player determines if a clipping region exists in the destination DC. If a clipping region exists, the region is applied to the metafile contents as they are played. To use the clipping feature, create and select any clipping regions into the destination DC prior to playing the metafile.

Finally, the metafile player applies world-to-page transform values set in the destination DC to the contents of the enhanced metafile. If any scaling, rotation, reflection, or shearing is desired, set the world-to-page transform value in the destination DC before playing the metafile.

hemf = GetEnhMetaFile((LPSTR)"MYFILE.EMF");         // Open the metafile.

hDC = GetDC(hWnd);                   // Retrieve a handle to a window DC.

GetClientRect(hWnd, &rect);  // Retrieve the client rectangle dimensions.

PlayEnhMetaFile(hDC, hemf, &rect);                   // Draw the picture.

DeleteEnhMetaFile(hemf);                  // Release the metafile handle.

ReleaseDC(hWnd, hDC);                           // Release the window DC.

Summary

Enhanced metafiles are a giant step beyond the Windows metafile. An expanded metafile header, a description string, a palette, device independence, and ease of porting from the Windows metafile format make enhanced metafiles an offer you can't refuse! It is expected that the advanced features of enhanced metafiles will make the use of metafiles more acceptable than Windows metafiles. With the features listed below, it is easy to understand why enhanced metafiles will become an invaluable tool for Win32-based applications:

· Full transformation support (removes scaling restrictions found in Windows metafiles)

· Unrestricted clipping capabilities

· Improved palette support

· Query support (as in GetViewportExtent and GetCurrentPositionEx)

· Advanced embedding features (metafiles and EPS files)

Probably the most important point to make about enhanced metafiles is that there is very little reason to enumerate the metafile. The playback code is smarter and does much of what developers have had to do themselves by means of enumeration for years.

(c) 1993 Microsoft Corporation. All rights reserved.

Comments:

See also:


file: /Techref/fileext/emf/enh_meta.htm, 37KB, , updated: 2008/1/2 11:42, local time: 2021/11/29 18:35,
TOP NEW HELP FIND:
52.23.219.12:LOG IN

 ©2021 These pages are served without commercial sponsorship. (No popup ads, etc...).Bandwidth abuse increases hosting cost forcing sponsorship or shutdown. This server aggressively defends against automated copying for any reason including offline viewing, duplication, etc... Please respect this requirement and DO NOT RIP THIS SITE. Questions?
Please DO link to this page! Digg it! / MAKE!

<A HREF="http://www.massmind.org/techref/fileext/emf/enh_meta.htm"> ENHMETA Technical Note</A>

After you find an appropriate page, you are invited to your to this massmind site! (posts will be visible only to you before review) Just type a nice message (short messages are blocked as spam) in the box and press the Post button. (HTML welcomed, but not the <A tag: Instead, use the link box to link to another page. A tutorial is available Members can login to post directly, become page editors, and be credited for their posts.


Link? Put it here:
if you want a response, please enter your email address:
Attn spammers: All posts are reviewed before being made visible to anyone other than the poster.
Did you find what you needed?



Welcome to massmind.org!



Welcome to www.massmind.org!



















































  .
