Serin (check qualifiers)

determines whether text received by Serin matches a table of qualifiers (password).

Another feature of PBASIC's Serin is the ability to compare incoming serial data to a table of qualifiers. Serin halts program execution until it receives data that exactly matches the qualifiers. This makes it possible to recognize key words in a text stream, or to protect access to a sensitive program.

You can add this capability to Serin using the routine Qualify and a few additional instructions. The listing shows how this works. Rather than present the entire Serin listing again, only the Qualify code appears here. To simulate receiving data with Serin, execute up to the ret at the end of the dummy Serin, then enter a byte at address 01Eh (buffer-1).

Qualifiers must match the case of the password. "SESAME" is not the same as "Sesame" as far as Qualify is concerned. Also, make sure to turn off the Serin filter flag if your password contains characters outside the range of filt_lo to filt_hi.

Serin and Qualify will wait forever to receive the password sequence. You may add code to count the number of bytes received and give up if the proper sequence is not submitted within a preset number of tries.

Demonstrating Qualify.

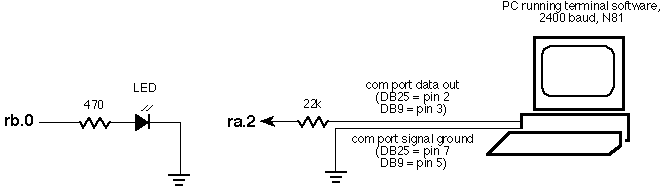

To see Qualify in operation, you may run it on the PSIM simulator as suggested in the program listing. For a live demonstration, connect the circuit shown below to an erasable PIC or PIC emulator, such as the Parallax downloader. Program the PIC or downloader with the program assembled from the file SERIN_Q.SRC on the disk. Make sure to use a 4-MHz clock on the PIC or downloader. Load a terminal program on the PC connected to the PIC and set it for 2400 baud, no parity, 8 dat a bits, 1 stop bit (N81). Now type in some numbers and text. Nothing happens until you type the password "Sesame". Then the LED toggles.


;
; ***************************************************************************
; ***  Bubble Software Parallax to PIC Source Converter. Copyright 1999.  ***
; ***  http://www.bubblesoftonline.com                 email: sales@picnpoke.com  ***
; ***************************************************************************
;
; QUALIFY table, string
; Reads a one-character Serin string and looks up the character in
; a table of "qualifiers." If the character matches the next qualifier,
; the routine increments a counter and checks to determine whether all
; qualifiers have been matched. If so, it returns a 1 in w. If not,
; it returns a 0 in w after resetting the counter to the first item in
; the qualifier list.

; Device data and reset vector
	P = pic16c55
	#include <16c55.inc>   ; processor assembler definitions
	_CONFIG _xt_osc & _wdt_off & _protect_off
 reset start

	org 8
qual 	Res 	d'1' 	; Pointer to qualifiers.
buffer 	equ 	d'31' 	; Serin string address.

	org 0

P_word       ADDWF pcl
             RETLW d'6'                 ; No. of elements in password.
             RETLW 'S'                  ; The password.
             RETLW 'e'
             RETLW 's'
             RETLW 'a'
             RETLW 'm'
             RETLW 'e'

; Below is a dummy Serin routine intended for use on the PSIM simulator.
; Wait until PSIM reaches the "ret" below, then change the data at buffer-1
; (hex address 1E). You can step through Qualify to see how it works.
; The password "Sesame" is 53h, 65h, 73h, 61h, 6Dh, 65h.

Serin        MOVLW 'A'                  ; Dummy Serin for demo.
             MOVWF buffer-1
             RETLW 0h                   ; Enter character data here.

start        MOVLW d'4'                 ; Input for serial data.
             TRIS 5h
             MOVLW d'0'                 ; All outputs for LEDs
             TRIS 6h
             CLRF 6h                    ; LEDs off to begin.
             CLRF qual                  ; Clear qual to start.

start_loop   CALL Serin                 ; Receive one byte.
             CALL Qualify               ; Check it against password.
             IORLW 0h                   ; IF w=1 THEN LEDs_on
             BTFSC status,z             ; ELSE :loop
             GOTO start_loop
             MOVLW d'255'               ; Password match: toggle LEDs.
             XORWF 6h
             GOTO start                 ; Do it again.

; Upon entry, a one-byte Serin string should be stored at buffer-1.
; Qualify will check it against the next entry in the P_word table, and
; if there's a match, will increment the qualifier counter qual. If there's
; no match, it will clear qual, and check the character against the first
; entry in P_word. This second step prevents Qualify from failing to
; recognize passwords after a false start, like "SeSesame."

Qualify      INCF qual,w                ; Look up next item in P_word.
             CALL P_word
             subwf buffer-1,0          ; Compare it to received byte by <Microchip instruction>
             BTFSS status,z             ; subtraction. If result <> 0, no match.
             GOTO Qualify_no_match
             INCF qual                  ; Match: increment qual pointer and
             CLRW                       ; get the 0th item in the table (number
             CALL P_word                ; of chars in the password).
             subwf qual,0              ; IF qual = no._of_P_word_chars THEN <Microchip instruction>
             BTFSC status,z             ; return with 1 in w.
             RETLW d'1'                 ; ELSE return with 0 in w.
             RETLW 0h
Qualify_no_match  MOVF qual             ; IF qual = 0, return with 0 in w.
             BTFSC status,z
             RETLW 0h
             CLRF qual                  ; ELSE qual = 0: GOTO Qualify (check
             GOTO Qualify               ; char against 0th password entry).




             end



; QUALIFY table, string
; Reads a one-character Serin string and looks up the character in
; a table of "qualifiers." If the character matches the next qualifier,
; the routine increments a counter and checks to determine whether all
; qualifiers have been matched. If so, it returns a 1 in w. If not,
; it returns a 0 in w after resetting the counter to the first item in
; the qualifier list.

	org	8
qual	ds	1	; Pointer to qualifiers.
buffer	=	31	; Serin string address.

; Device data and reset vector
	device	pic16c55,xt_osc,wdt_off,protect_off
	reset	start
	org	0

P_word	jmp	pc+w
	retw	6	; No. of elements in password.
	retw	'Sesame'	; The password.

; Below is a dummy Serin routine intended for use on the PSIM simulator.
; Wait until PSIM reaches the "ret" below, then change the data at buffer-1
; (hex address 1E). You can step through Qualify to see how it works.
; The password "Sesame" is 53h, 65h, 73h, 61h, 6Dh, 65h.

Serin	mov	buffer-1,#'A'	; Dummy Serin for demo.
	ret	; Enter character data here.

start	mov	!ra,#4	; Input for serial data.
	mov	!rb, #0 ; All outputs for LEDs
	clr	rb	; LEDs off to begin.
	clr	qual	; Clear qual to start.

:loop	call	Serin	; Receive one byte.
	call	Qualify ; Check it against password.
	test	w	; IF w=1 THEN LEDs_on
	snz	; ELSE :loop
	jmp	:loop
	XOR	rb,#255 ; Password match: toggle LEDs.
	jmp	start	; Do it again.

; Upon entry, a one-byte Serin string should be stored at buffer-1.
; Qualify will check it against the next entry in the P_word table, and
; if there's a match, will increment the qualifier counter qual. If there's
; no match, it will clear qual, and check the character against the first
; entry in P_word. This second step prevents Qualify from failing to
; recognize passwords after a false start, like "SeSesame."

Qualify mov	w,++qual	; Look up next item in P_word.
	call	P_word
	subwf	buffer-1,0	; Compare it to received byte by
	jnz	:no_match	; subtraction. If result <> 0, no match.
	inc	qual	; Match: increment qual pointer and
	clr	w	; get the 0th item in the table (number
	call	P_word	; of chars in the password).
	subwf	qual,0	; IF qual = no._of_P_word_chars THEN
	snz	; return with 1 in w.
	retw	1	; ELSE return with 0 in w.
	ret
:no_match	test	qual	; IF qual = 0, return with 0 in w.
	snz
	ret
	clr	qual	; ELSE qual = 0: GOTO Qualify (check
	jmp	Qualify ; char against 0th password entry).
